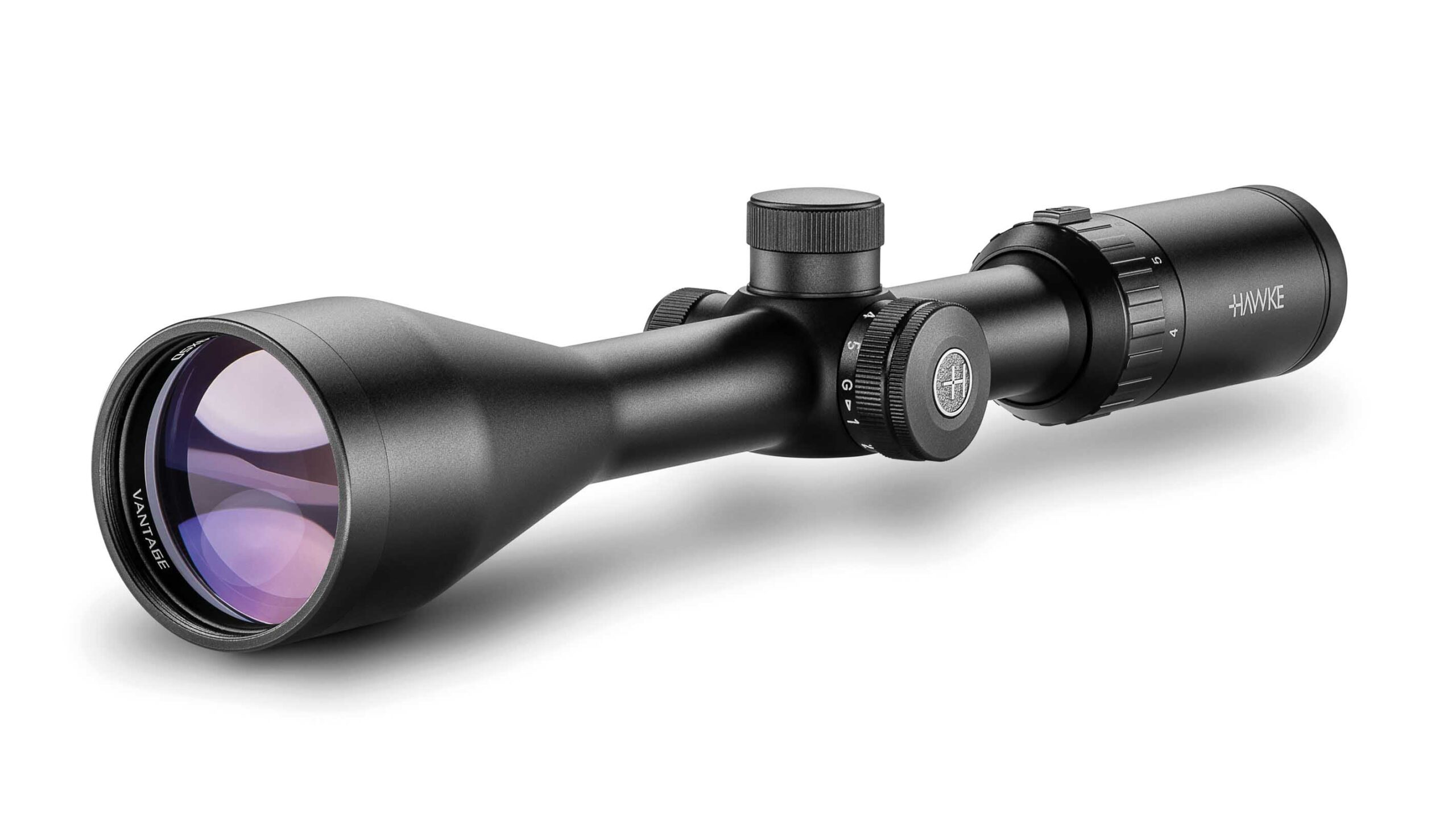

HAWKE VANTAGE IR 3-9X50 – L4A DOT – H2 LENS SYS

A variant of the classic L4 reticle, the L4A Dot uses a more open outer post design to keep more of the target visible while aiming. 30″ spacing from center to post at 100yds when on 4x magnification. This is equivalent to 83cm at 100m.

$450.00

1 in stock

SKU: 14229
STOCK AVAILABILITY:

1 in stock

Description

An extensive range of scopes to suit all calibres and disciplines.

All Vantage riflescopes feature our H2 optics in a variety of configurations.

IR models feature precision glass etched reticles with multi-stage illumination in both red and green.

  • Capped Low-Profile Turrets
  • 1 Inch Mono-tube chassis
  • Illumination
  • 11 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell

Nitrogen purged. Shockproof. Waterproof. Fog-proof.

All calibre rated.

Hawke Warranty.

L4A Dot Reticle (2.5 MOA)

A variant of the classic L4 reticle, the L4A Dot uses a more open outer post design to keep more of the target visible while aiming. 30″ spacing from center to post at 100yds when on 4x magnification. This is equivalent to 83cm at 100m.

Scope Tube
1 Inch
Optical System
System H2
Magnification
3 – 9x
Objective Lens
50mm
Reticle
L4A Dot (2.5 MOA)
Illumination
5 Levels (Red & Green)
Illumination Control
Stepped Rheostat
Parallax
Fixed
Focal Plane
SFP (Second Focal Plane)
Field of View
33.6 – 11ft @100yds
11.2 – 3.7m @100m
Field of View (°)
6.4 – 2.1
Eye Relief
3.5in
90mm
PX/Focus
100yds
91m
Exit Pupil
0.66 – 0.22″
16.7 – 5.6mm
Click Value
1⁄ 4MOA
Elevation Turret Clicks (max)
90 MOA
Windage Turret Clicks (max)
90 MOA
Ocular Type
Fast Focus
Power Selector
Knurled Posi-Grip
Lens Coating
Fully Multi-Coated – 11 Layers
Length
13.5in
343mm
Weight
17.6oz
498g
Turret Type (Elevation)
Capped. Low-Profile. Resettable
Turret Type (Windage)
Capped. Low-Profile. Resettable

Additional information

Weight 1.5 kg
Dimensions 50.0 × 15.0 × 15.0 cm
