Description
– Overview –

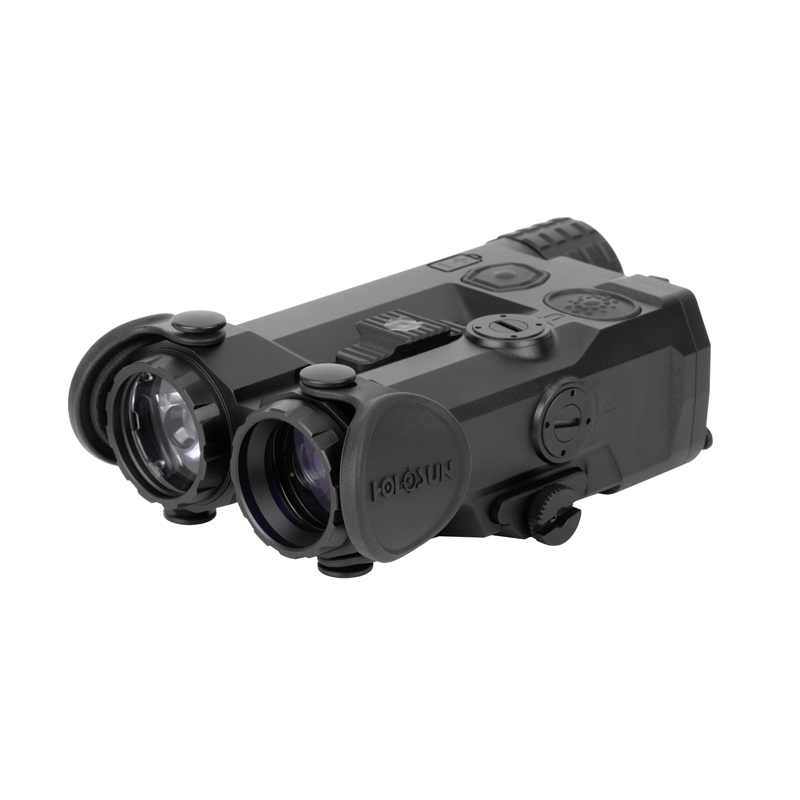

IRIS 4 is a quad-function multi-laser device with a redesigned 7075 aluminium housing that is 43% lighter, 29% lower, and 28% narrower than the previous model. IRIS 4 now boasts a powerful 45mW infrared (IR) illuminator and a 1,000 lumen / 25,000 candela white light along with a VIS (visible) laser pointer and infrared (IR) laser pointer. Additionally, the IRIS 4 now features independent fire buttons for ambidextrous activation of momentary or constant ON functions of the lasers and white light. IRIS 4 also features an updated, rear-facing power and mode selector switch with improved ergonomics and feel. An all-new, three-button remote activation switch is included and features a VIS override function. IRIS 4 is available with either a green or red VIS pointer.
Items Dimensions (in inches)
In the Box
- 1x IRIS-GR4
- 1x Triple Button Pressure Pad
– Specification –
- IR Illuminator: 60mW VCSEL
- • IR Laser: 0.7mW VCSEL
- • Green / Red Laser: 5mW
- • LED Light: 1,000 Lumens / 25,000 Candela
- • Battery Type: 2x CR123A / 18650
- • Weight: 8.5oz
ELECTRONIC SPECS
| Power Source | Battery |
| Battery Type | 18650 |
| Battery Life (Hours) | Up to modes |
| Thermal Modes | N/A |
| Digital Modes | N/A |
| Video Recording | N/A |
| Screen Refresh Rate | N/A |
| Digital Screen | N/A |
| Brightness Setting | Up to modes |
PHYSICAL SPECS
| Window Size | N/A |
| Dimension (in) | 4.2×2.3×1.4 |
| Weight (oz) | 8.5 |
MECHANICAL SPECS
| Housing Material | 7075 T6 Aluminum |
| Surface Finish | Hard Anodize |
| Adjustment per Click | 0.5 MOA |
| W&E Travel Range | ±50 MOA |
ENVIRONMENT SPECS
| Storage Temperature | -40℃~70℃ |
| Working Temperature | -20℃~51℃ |
| Submersion | IPX8 |
| Vibration | 1000G |
ILLUMINATOR SPECS
| White LED Candela | 25000 |
| Laser & Illuminator Type | Dual Laser & Dual Illuminator |
| White LED Output | 1000 Lumens |
| IR Illuminator Class | Class 1 |
| IR Illuminator Output | VCSEL 60mW |
| IR Pointer Class | Class 1 |
| IR Pointer Output | 0.1mw(low)/0.7mw(high) |
| Visible Laser Class | 3R |
| Visible Laser Output | 1mw(low)/5mw(high) |
