Description

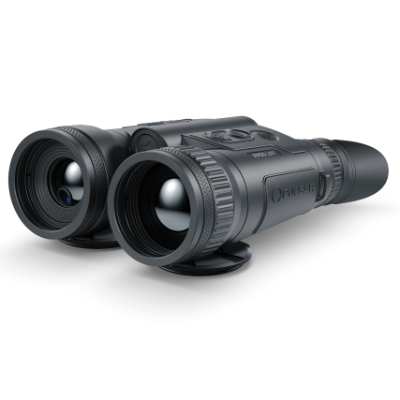

| Model | LRF XP50 |
| SKU | 77465 |
| Microbolometer | |
| Type | uncooled |
| Resolution, pixels | 640×480 |
| Pixel Pitch, µm | 17 |
| NETD, mK | < 25 |
| Frame rate, Hz | 50 |
| Optical Characteristics | |
| Lens, mm | F50 F/1.0 |
| Continuous digital zoom, x | 2.5-20 |
| Digital zoom | 2x/4x/8x |
| Minimum Focus Distance, m/y | 5 / 5.47 |
| Eye relief, mm/inch | 15 / 0.59 |
| Exit pupil diameter, mm | 3.5 |
| Field of view (HxV), degrees / m@100m | 12.4 / 21.8 |
| Diopter adjustment, D | -5/+4 |
| Interpupillary distance adjustment, mm | 63-74 |
| Range of detection (deer type object), m/y | 1800 / 1970 |
| Display | |
| Type | AMOLED |
| Resolution, pixels | 1024Ñ…768 |
| Operational Characteristics | |
| Power supply, V | 3.7 |
| Battery type / Capacity / Output voltage | Li-Ion Battery Pack APS3 / 3200 mAh / DC 3.7 V (removable) Li-Ion Battery Pack / 4000 mAh / DC 3.7 V (built-in) |
| External power supply | 5V |
| Operating time on Battery Pack (at t=22°C), h* | 8.5 |
| Degree of protection, IP code (IEC60529) | IPÐ¥7 |
| Operating temperature range, °С /° F | -25 … +50 / -13 … 122 |
| Dimensions, mm / inch | 196Ñ…143Ñ…76 / 7.72×5.59×2.99 |
| Weight (with battery), kg / oz | 0.95 / 33.5 |
| Video Recorder | |
| Video / photo resolution, pixel | 1024Ñ…768 |
| Video / photo format | .mp4 / .jpg |
| Built-in memory | 16 Gb |
| Wi-Fi Channel** | |
| Frequency | 2.4/5 GHz |
| Standard | IEEE 802.11 b/g/n/ac |
| Characteristics of the Rangefinder | |
| Wavelength, nm | 905 |
| Max. measuring range***, m/y | 1000 / 1094 |
| Measurement accuracy, m | +/-1 |
*Actual operating time depends on the extent of using Wi-Fi, integrated video recorder and integrated laser rangefinder.
**The reception range may vary depending on various factors: obstacles, other Wi-Fi networks.
***Depends on the characteristics of the object under observation and environmental conditions.
