Description

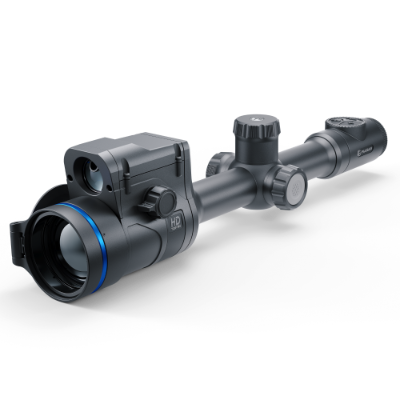

| Model | LRF XL50 |
| SKU | 76557 |
| Microbolometer | |
| Type | uncooled |
| Resolution, pixels | 1024×768 |
| Pixel Pitch, µm | 12 |
| NETD, mK | < 35 |
| Frame refresh rate, Hz | 50 |
| Optical Specifications | |
| Lens, mm | F50 F/1.0 |
| Magnification, x | 1.75 – 14 |
| Eye relief, mm/inch | 50/1.96 |
| Field of view (H), °/m@100 | 14/24.6 |
| Diopter adjustment, D | -3/+5 |
| Detection distance (Object of “deer” type), m/y | 2300/2515 |
| Aiming Reticle | |
| Click value, mm@100 m – when magnifying, x | 24 mm – 1.75х 12 mm – 3.5х 6 mm – 7х 3 mm – 14х |
| Click range (H/V), mm@100 m | 4800/4800 |
| Display | |
| Type | AMOLED |
| Resolution, pixels | 1024х768 |
| Operating Features | |
| Diameter of the riflescope body to assemble the mounting rings, mm | 30 |
| Power Supply, V | 3–4.2 |
| Battery type / Capacity / Rated Output Voltage | Li-Ion Battery Pack АPS2 / 2000 mAh / DC 3.7 V (removable) or Li-Ion Battery Pack APS3 / 3200 mAh / DC 3.7 V (removable)
Li-Ion Battery Pack APS5 / 4900 mAh / DC 3.7 V (built-in) |
| External Power Supply | 5 V, 9 V (USB Type-C Power Delivery) |
| Battery Packs (built-in APS5 and removable APS2/APS3) operating time at temp. = 22 °C, hrs* | 6/7 |
| Max. recoil power on rifled weapon, Joules | 6000 |
| Max. recoil power on smoothbore weapon, caliber | 12 |
| Degree of protection IP code (IEC60529) | IPX7 |
| Operating temperature, °С / °F | -25 – +50 / -13 – +122 |
| Dimensions with an eyecup, mm/inch | 426×78.5×94.5 / 16.77×3.09×3.72 |
| Weight (without removable battery), kg/oz | 1.03 / 36.33 |
| Video Recorder | |
| Photo / video resolution, pixels | 1024×768 |
| Video / photo format | .mp4 / .jpg |
| Built-in memory | 64 GB |
| Wi-Fi Channel** | |
| Frequency | 2.4/5 GHz |
| Standard | IEEE 802.11 b/g/n/ac |
| Laser Rangefinder | |
| Wavelength, nm | 905 |
| Max. Measurement Range, m/y*** | 800 / 874.9 |
| Measurement Accuracy, m | 1 |
* The actual operating time depends on the intensity of using Wi-Fi, video recorder, Bluetooth and laser rangefinder.
** The reception range may vary depending on various factors: obstacles, other Wi-Fi networks.
*** Depends on the characteristics of the object under observation and environmental conditions.
